UHF / IF 2 Way Passive Splitter/Combiner
Categories:
ANCIL
The Global Professional UHF / IF Band Passive 2 way Combiner/Splitter has been designed to combine or split a UHF or IF signal.
The unit can be used in either configuration as splitter o...
More Information
The Global Professional UHF / IF Band Passive 2 way Combiner/Splitter has been designed to combine or split a UHF or IF signal.
The unit can be used in either configuration as splitter or combiner.

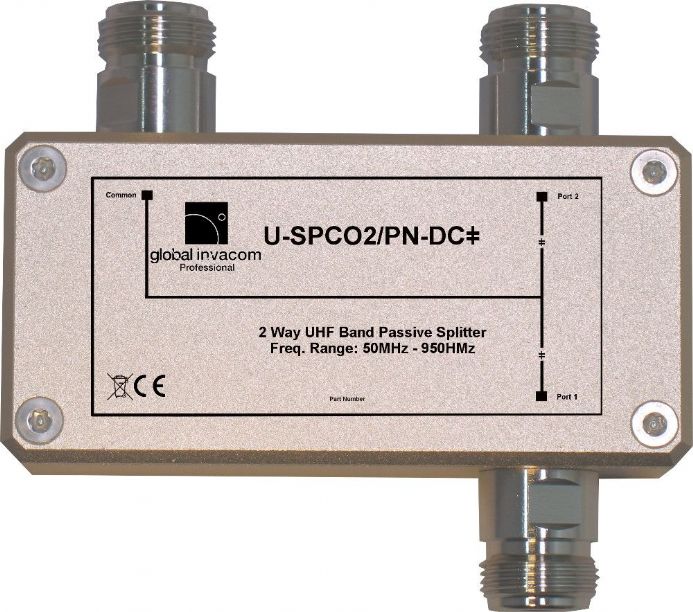

The picture illustrates a N type splitter with DC passing on port 1 and port 2 blocked however other configurations are available.
Specifications:
| Weight | 0.25kg |
| Frequency Pass | 50MHz - 950MHz |
| Through Loss | 4dB +/-1dB |
| Supply Voltage | 12 -48V DC |
| Max DC Current Handling | 5 Amp |
| Dimensions | 88mm x 43mm x 26mm |
UHF Band splitter/combiner's can also be supplied as rack mount solutions.
For more details please use the product enquiry form or contact our sales team.
Specifications
Download the UHF / IF 2 Way Passive Splitter/Combiner specifications.
