UHF / IF 8 Way Active Splitter

The Global Professional UHF / IF Band Active 8 way Splitter has been designed to split a UHF or IF signal with low insertion loss. Dependant on configuration the unit... Read full description

SKU: U-SP8/AB-DC1

Categories: Professional electronics

Select Size

Description Specifications Enquire

The Global Professional UHF / IF Band Active 8 way Splitter has been designed to split a UHF or IF signal with low insertion loss.

Dependant on configuration the unit can be powered either by Port 1 or external Power Supply Unit (PSU) available separately.

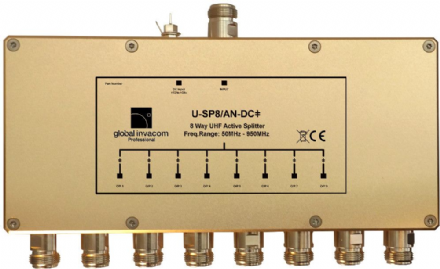

The picture illustrates a N type splitter with DC passing on port 1 and remaining 7 ports blocked however other configurations are available

It has:

EMI-proof enclosure
Low insertion loss
High Isolation
N type & BNC connectors available
F type & SMA connectors available

Please note that Active Splitters cannot be used as Active Combiners.

UHF Band splitters can also be supplied as rack mount solutions.

Specifications:

Weight	1.2kg
Frequnecy Pass	50MHz - 950MHz
Through Loss	0dB +/-3dB
Port to Port Isolation	+20dB
Return Loss	+15dB
Supply Voltage	12 -48V DC
Max DC Current Handling	1 Amp
Current Consumption	60mA
Dimensions	223mm x 98.5mm x 26mm

For more details please use the product enquiry form or contact our sales team.

Specifications

Download the UHF / IF 8 Way Active Splitter specifications.

u-sp8-an-dc1.pdf
