UHF / IF Band 8 Way Passive Splitter/Combiner
Categories:
ANCIL
The Global Professional UHF / IF Band Passive 8 way Combiner/Splitter has been designed to combine or split a UHF or IF signal.
The unit can be used in either configuration as splitter o...
More Information
The Global Professional UHF / IF Band Passive 8 way Combiner/Splitter has been designed to combine or split a UHF or IF signal.
The unit can be used in either configuration as splitter or combiner.

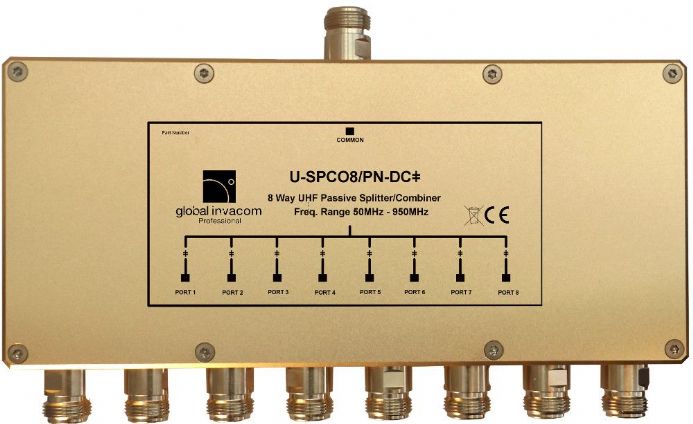

The picture illustrates a N type splitter with DC passing on port 1 and remaining 7 ports blocked however other configurations are available.
| Weight | 1.2kg |
| Frequnecy Pass | 50MHz - 950MHz |
| Through Loss | 8dB +/-1dB |
| Port to Port Isolation | +20dB |
| Return Loss | +15dB |
| Max DC Current Handling | 5 Amp |
| Dimensions | 218.5mm x 98.5mm x 26mm |
UHF Band splitter/combiner's can also be supplied as rack mount solutions.
For more details please use the product enquiry form or contact our sales team.
Specifications
Download the UHF / IF Band 8 Way Passive Splitter/Combiner specifications.
Enquire
Add your details below to find out more about this product. We'll aim to get back to within 48 working hours.
UHF / IF Band 8 Way Passive Splitter/Combiner
Sale price£175.00
