VHF/UHF Defence Radio Links Tactical System
Categories:
RF over Fibre (RFoF)
The Tactical Ruggedized Radio and Antenna units enable easy field deployment of remote radio transmission.
By utilizing RF over Fibre (RFoF) Antenna Extender technology, this option pro...
More Information

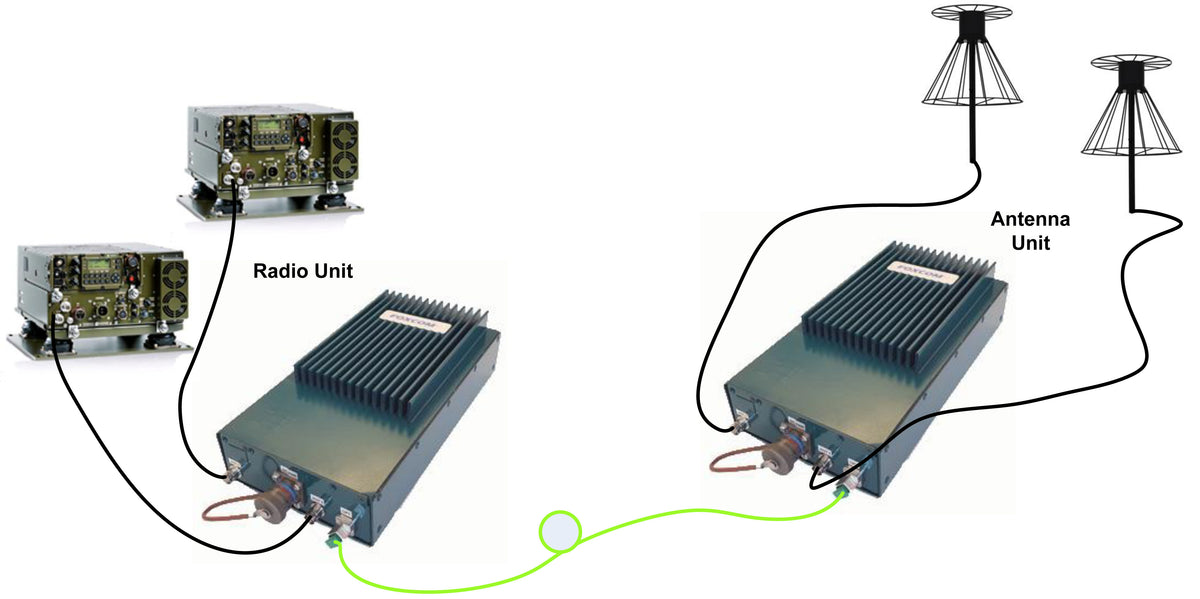

The Tactical Ruggedized Radio and Antenna units enable easy field deployment of remote radio transmission.
By utilizing RF over Fibre (RFoF) Antenna Extender technology, this option provides extended radio coverage by placing the antenna on a high platform. The Tactical option enables an unimpeded, clean line of communication while positioning the operator at a lower, stationary, safe location.
In addition the unit acts as a repeater by receiving weak signals and re-transmitting them locally. Consequently, the Tactical option provides an efficient use of the available radio frequency spectrum.
| RF Specification | Value |
|---|---|
| Frequency Range - Bandwidth | 30-520MHz |
| Input signal range (RSU) [total power] | Up to +37dBm (5Watt) |
| Input signal range (ASU) [total power] | Up to +10dBm |
| TX path gain (RSU to ASU) | Auto adjustable |
| Rx Path gain (ASU to RSU) | 0dB/+10dB |
| RSU/ASU optical power output | -3dBm / 0.5mW (Min) |
| Optical Specifications | |
| RSU/ASU Optical Power Output | -3dBm / 0.5mW (Min) |
For more details and prices please use the product enquiry form or contact our sales team.
Specifications
Download the VHF/UHF Defence Radio Links Tactical System specifications.
