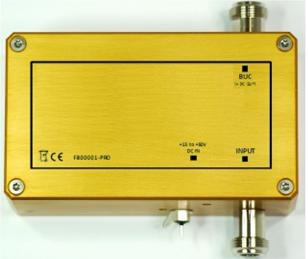

VSAT 10MHz Generator

The VSAT 10MHz generator is a high stability reference source for VSAT Block Upconverters. RF Specification Value Frequency Range - Bandwidth 10 MHz Output Level +7dBm +/-1dB Phase Noise 10Hz–130dBc/Hz... Read full description

SKU: FOX-V-GEN_AN-DCI_DCB

RF Specification	Value
Frequency Range - Bandwidth	10 MHz
Output Level	+7dBm +/-1dB
Phase Noise	10Hz–130dBc/Hz
	100Hz–145dBc/Hz
	1KHz–155dBc/Hz
	10KHz–158dBc/Hz
	50KHz–160dBc/Hz
Through Loss	Nominal 0db +/- 0.5dB

RF Specification

Value

Frequency Range - Bandwidth

10 MHz

Output Level

+7dBm +/-1dB

Phase Noise

10Hz–130dBc/Hz

100Hz–145dBc/Hz

1KHz–155dBc/Hz

10KHz–158dBc/Hz

50KHz–160dBc/Hz
