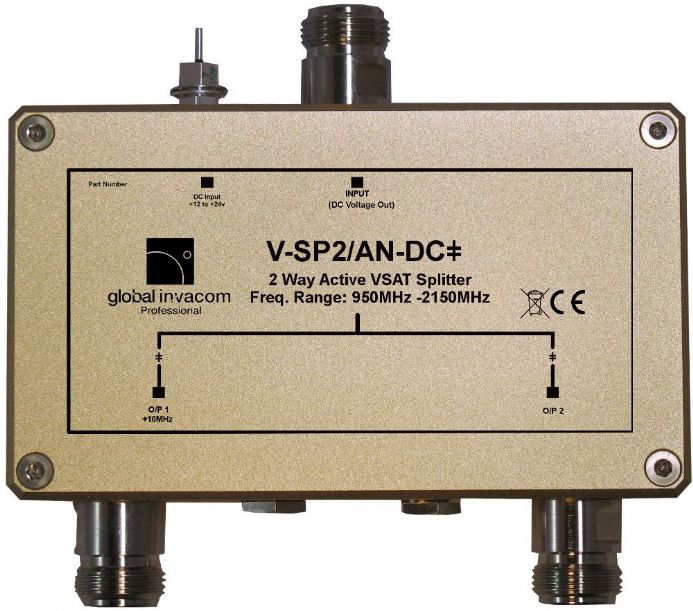

VSAT 2 Way Active Splitter

The Global Professional Very Small Apature Terminal (VSAT) active 2 way Splitter has been designed to split the L band from a typical VSAT system to two ports with zero... Read full description

SKU: V-SP2/AB-DC1

Categories: Professional electronics

Select Size

Description Specifications Enquire

The Global Professional Very Small Apature Terminal (VSAT) active 2 way Splitter has been designed to split the L band from a typical VSAT system to two ports with zero insertion loss.

Port one on the splitter will also allow DC and a 10MHz Reference signal to pass through from port 1 to the common port. The remaining output port is blocked to both DC and 10MHz.

Available in 'N', 'F', 'BNC' & 'SMA' Connector configurations.

Unit may be line powered or via the DC solder feed through.

VSAT splitters can also be supplied as rack mount solutions.

Weight	0.4kg
Port to Port Isolation	+20dB
Return Loss	+15dB
Current Consumption	60mA
Dimensions	90mm x 80mm x 30mm

For more details please use the product enquiry form or contact our sales team.

Specifications

Download the VSAT 2 Way Active Splitter specifications.

v-sp2-an-dc1.pdf
