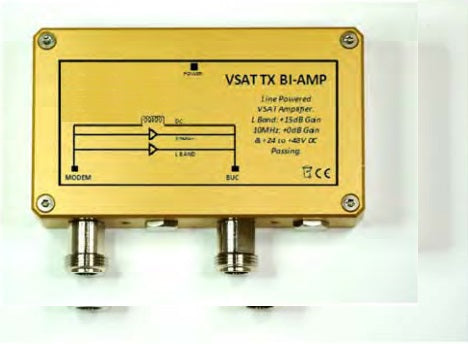

VSAT Bi-AMP Transmitter

The VSAT BIAMPTX amplifies the L-Band signal from the Modem to the Block-Up Converter. Additionally, the 10MHz Reference signal is also amplified. RF Specification Value Frequency Range - Bandwidth 950–2150MHz... Read full description

SKU: FOX-V-BIAMPTX/PN-DCP

Categories: Global Professional

The VSAT BIAMPTX amplifies the L-Band signal from the Modem to the Block-Up Converter. Additionally, the 10MHz Reference signal is also amplified.

RF Specification Value
Frequency Range - Bandwidth 950–2150MHz
Gain at L-Band 0dBm Input 0 to +14dBm Factory preset
Gain at 10MHz 0dBm Input 0 to +13dBm Factory preset
Max. DC Current pass through 4 Amps
Max DC voltage pass through 48V
Current consumption 100mA



For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the VSAT Bi-AMP Transmitter specifications.

V-BIAMPTX_PN-DCP_GF_v1.pdf
