Home Products RF over Fibre (RFoF) VSAT Solutions for Maritime Applications

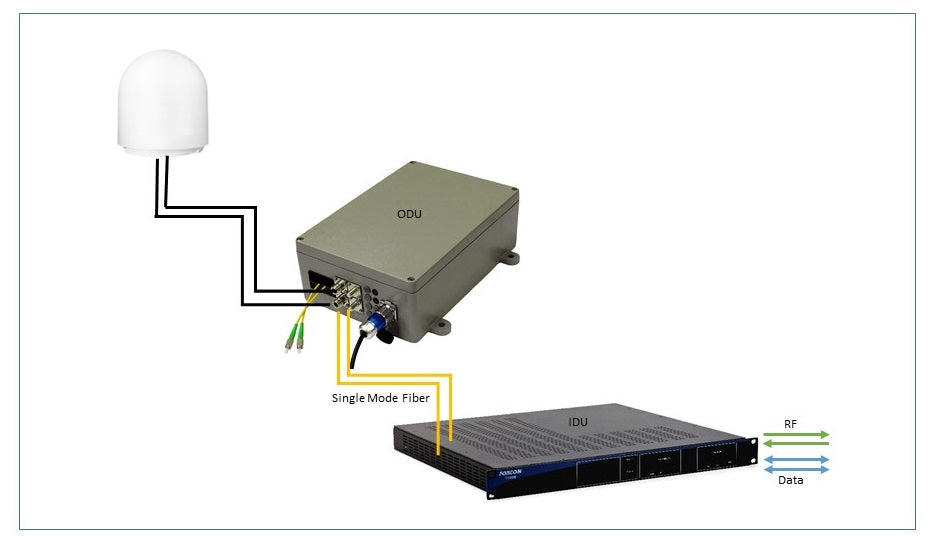

VSAT Solution for Maritime Applications unit diagram

VSAT Solutions for Maritime Applications

Our fully integrated Maritime VSAT solution provides for the first time ever a cost effective alternative to coax cable deployments. Harnessing the superior performance of fibre optic cable, the Sat-Light... Read full description

SKU: V8013240

Categories: SATCOM

Enquire
Description Specifications Enquire

Our fully integrated Maritime VSAT solution provides for the first time ever a cost effective alternative to coax cable deployments. Harnessing the superior performance of fibre optic cable, the Sat-Light Maritime solution meets the special needs of Maritime service providers and integrators around the globe.

The Sat-Light Maritime solution is compact and flexible, making it an ideal solution for both new and retrofit applications. The kit consists of the 4000 series outdoor unit (ODU), which is installed in the radome, and the 7000 series chassis and power supply below deck. The Maritime fibre solution provides bi-directional L-band transport and a 10MHz reference signal needed for the Block Upconverter (BUC). Two bi-directional RS422 ports allow the below desk equipment to control the antenna.

The ODU is an IP67 rated enclosure with a special conformal coating added to the internal components. This special coating adds to the durability of the unit by provided extra protection from humidity and salt corrosion.

Ships, yachts, oil rigs and other marine facilities deploying our maritime solution, can now enjoy the many benefits that optical fibre has to offer, such as improved signal quality, lightning protection, safety, compatibility and ease of installation.

Features:
  • Low Cost VSAT solution for maritime terminals.
  • TVRO at sea
  • Compatible with leading VSAT manufacturers
  • Ultra low loss connections up to 2km
  • Eliminate lightning damage, EMI and RFI
  • IP67 rated outdoor enclosure
  • Conformal-coated components
RF Specification Value
Frequency Range - Bandwidth 950 - 2150MHz
Noise Figure 22dB
Input Signal Range - Total Power -20 to -3dBm
RF Output Signal Range - Total Power -20 to +5dBm (±10dB Adjustable)
Optical Specifications
Optical Budget / Distance 1310nm 1550nm 3dB



For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the VSAT Solutions for Maritime Applications specifications.

Maritime_VSAT_v1_GF.pdf
