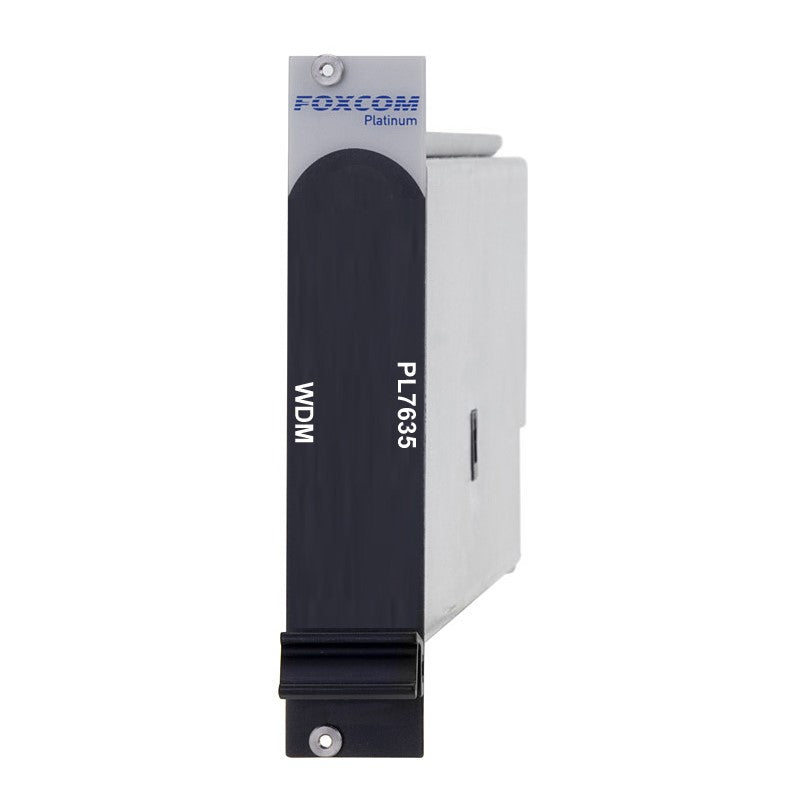

WDM Diplexer Module

The Sat-Light/Platinum WDM PL7635 multiplexes and de-multiplexes 1310 nm and 1550 nm optical wavelengths on one single optical fibre thus enabling transmission of two different RF signals over a single... Read full description

SKU: PL7635

Categories: SATCOM

Description Specifications Enquire

The Sat-Light/Platinum WDM PL7635 multiplexes and de-multiplexes 1310 nm and 1550 nm optical wavelengths on one single optical fibre thus enabling transmission of two different RF signals over a single fibre (RFoF).

The PL7635 is also capable of combining two wavelengths in opposite directions to create bi-directional communications over a single fibre.

Features & Benefits

Reduces cable connector failures
Greatly improves cable management

RF Specification	Value
Frequency Range - Bandwidth	1310nm: 1295 to 1325; 1550nm: 1528 to 1565
Insertion Loss	0.8dB
Isolation between 1310 to 1550 nm ports	17dB
Optical return loss	-55dB
Wave dependent loss	0.15
Temperature dependent loss	0.15
Operating Temperature Range	-10 to +55
Storage Temperature Range	-45 to +85

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the WDM Diplexer Module specifications.

PL7635_WDM_Module_v1_GF.pdf
