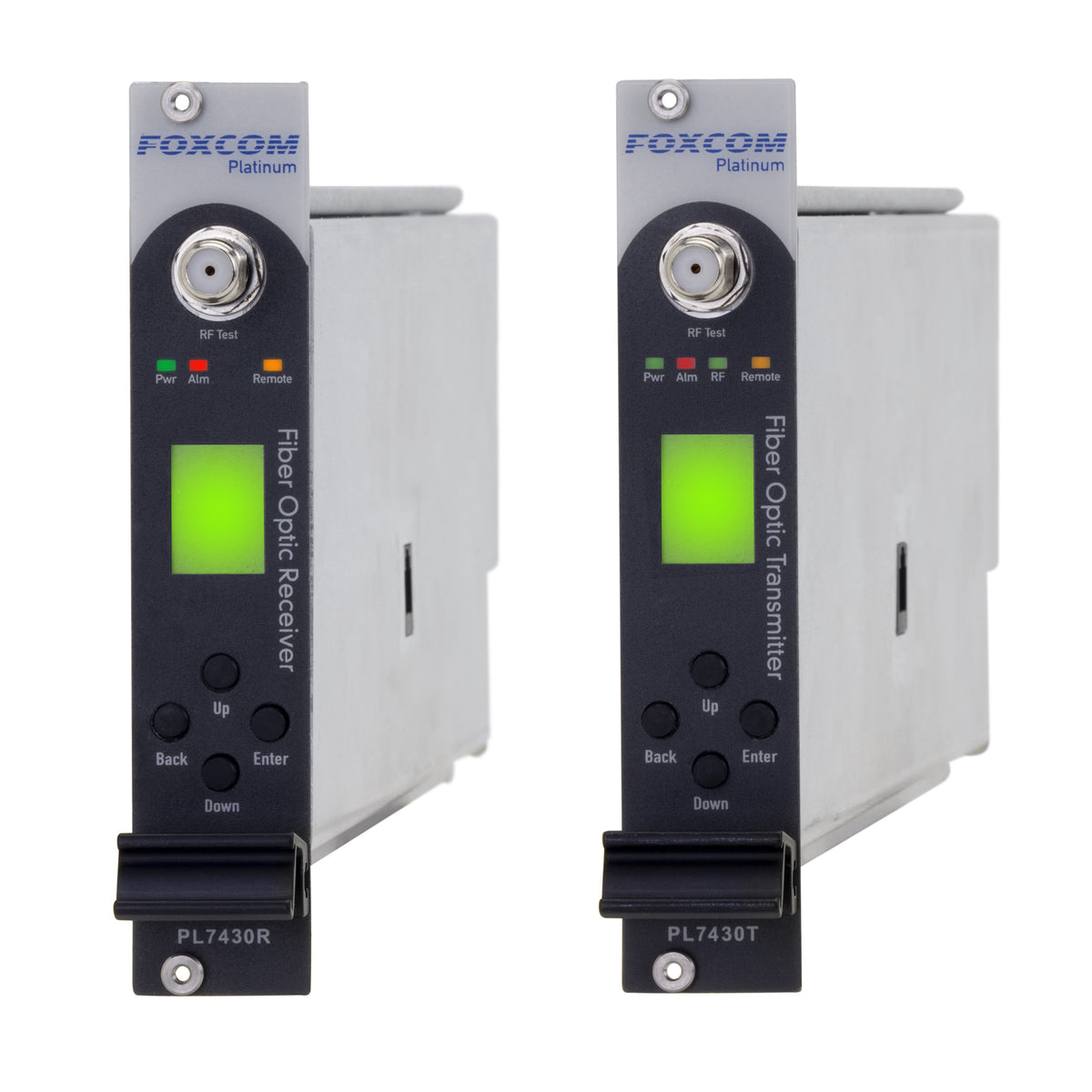

Wideband 45km RF Link

Our Platinum Wideband products are designed to meet the increasing demand for modularity and high-performance in a small form factor for superior long-distance transmission. With high RF input power and... Read full description

SKU: PL7440T / PL7440R16

Categories: SATCOM

Our Platinum Wideband products are designed to meet the increasing demand for modularity and high-performance in a small form factor for superior long-distance transmission. With high RF input power and wide dynamic range, the link is designed to provide full specification service up to a full 16 dB optical budget with the PL7440R16 receiver.

Utilizing our DigiRF technology, the user has full control of all important functions for setup, operation, and analysis via the front panel LCD or via the associated sub-rack SNMP capability.

In addition, IMizer, an automated adjustable link calibration embedded system enables the user to align the RF links IMD/CNR to specific linearity performances without a two-tone test. Select the desired IMD for the optical transmitter, either locally or remotely, IMizer automatically adjusts the laser drive to meet the IMD requirements. TheIMizer requires the use of a correction factor table above 2.5 GHz.

Each low profile individual transmitter or receiver can be “hot swapped” in the subrack chassis maintaining a best subsystem uptime capability. Each module contains an individual processor to maximize specification performance at all times under demanding user applications.

The PL7440T  transmitter and PL7440R16 receiver are designed for chassis mounting. The associated Platinum chassis, model PL7010, has 12 active slots, one main control processor (MCP) slot and two redundant power supplies. No fans are required even under full sub-rack loading and full Low Noise Block (LNB) powering.

It features:

  • Wideband: 10 – 3000 MHz
  • More than 45km distance [70km with the PL7440T1550]
  • Powerful management capabilities via a front panel LCD and rack mounted SNMP
  • User control and setting of required IMD level
  • Variety of RF and optical connectors
  • 1550nm and CWDM ITU Grid laser options are available for longer fiber runs and single fiber multiplexing solutions

RF Specification Value
Frequency Range - Bandwidth 10 – 3000MHz
Amplitude Response @ Unity Gain ±2dB
Noise Figure 15dB
Output IP3 (OIP3) 20dBm
Input Signal Range - Total Power 0 to -50dBm
RF Output Signal Range - Total Power 0 to -40dBm
Optical Specifications
Optical Budget / Distance 1310nm 1550nm 16dB (45Km | 70Km)


For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the Wideband 45km RF Link specifications.
