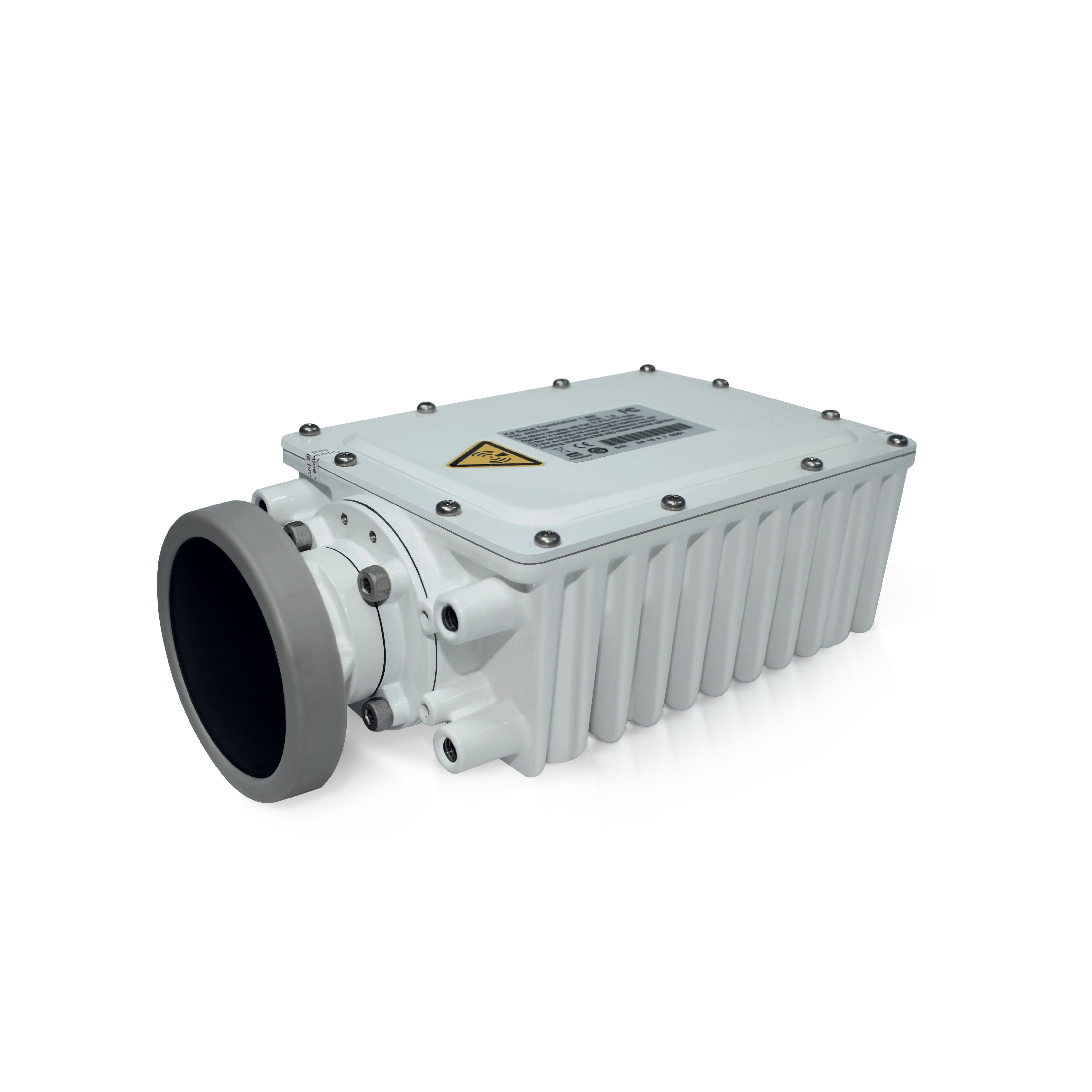

XRF - Ka Band Transceiver Platform : 1.5W to 3W Linear Power

The XRF transceiver is the result of applying the industry’s cutting edge Ka-Band VSAT engineering techniques and production methods to result in our lightest, most compact and affordable design to... Read full description

SKU: XRF33F24ZD/L

Categories: SATCOM

Description Specifications Enquire

The ruggedised IP-67 sealed enclosure integrates a Block Up Converter (BUC), Low Noise Block (LNB), field-configurable circular polariser, and TRF guaranteeing consistent communications performance.

The XRF transceiver additionally includes audible pointing assistance to simplify installation. Supporting the latest S-Band modem technologies with 10 MHz reference compatibility, the XRF is optimised for high volume production for global consumer broadband deployments. Production units are 100% tested with a rigorous process to ensure reliable maintenance-free operation for years.

The transceiver:

Covers 1GHz of RF bandwidth transmit and receive
Is field configurable integrated circular polarisation
Integrated OMT and TRF
PLL LNB (±25ppm)
100% quality tested for functionality across operating temperatures

All products are fully compatible with our antenna products

Other options are available including a 3W output power and 50MHz TX reference and variations on TX and RX LO IF frequencies.

For more details and prices please use the product enquiry form or contact our sales team.

Specifications

Download the XRF - Ka Band Transceiver Platform : 1.5W to 3W Linear Power specifications.

XRF33F14ZD_L.pdf
