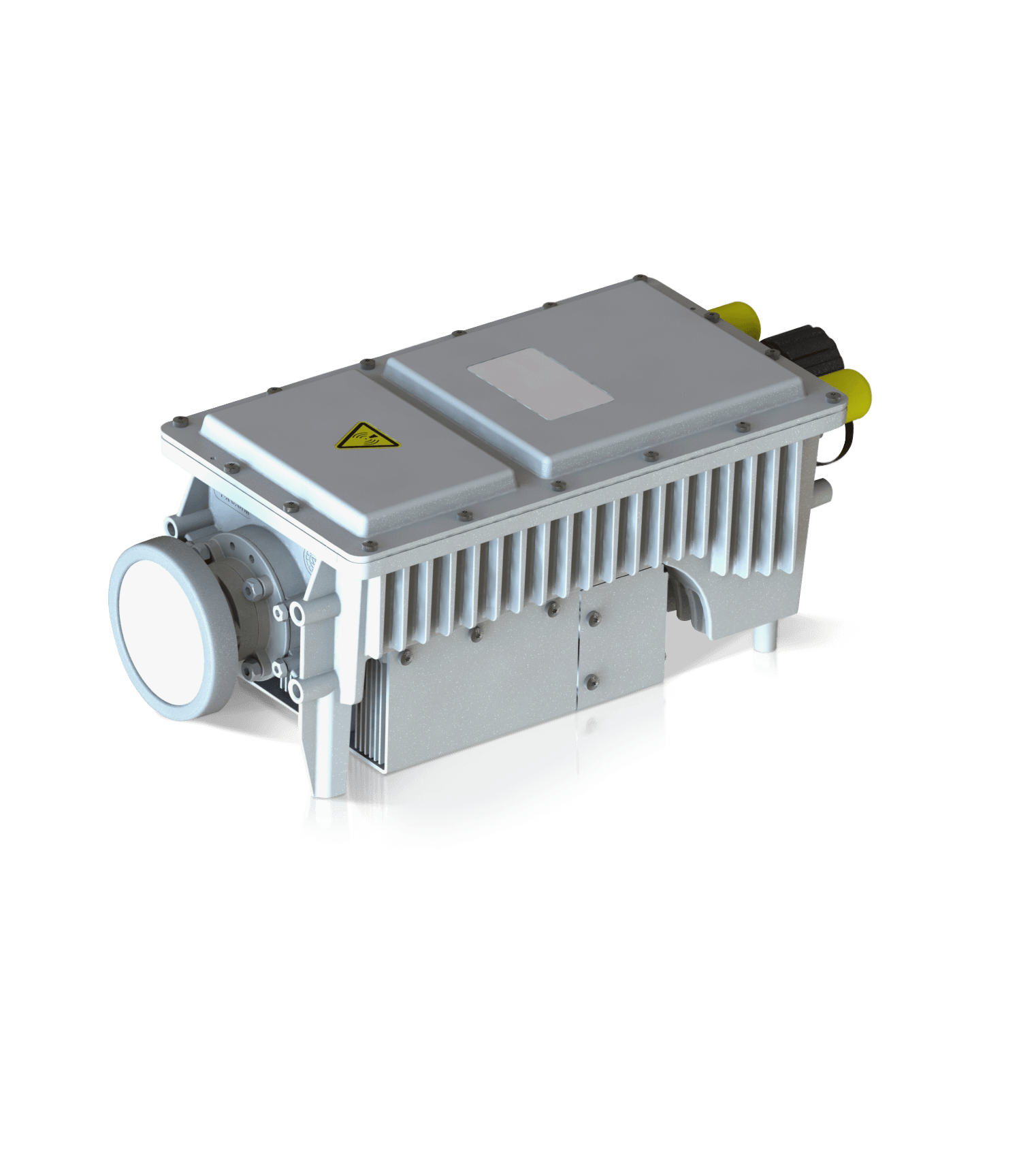

XRJ - Ka Band Transceiver Platform : 5W - 25W Linear Power / 10W - 40W Saturated Power

Combining the transmit and receive functionality of a BUC, LNB, OMT and Feed; improving RF performance & SWaP-C.

The XRJ transceiver is a breakthrough in cutting edge Ka-Band VSAT engineering. A GEO/ MEO/LEO compatible ruggedised IP-67 sealed enclosure integrates a BUC, LNB, and TRF in a single unit.

The Transceiver is highly suitable for the demanding government and defence market, as well as for commercial deployments, and is designed to work in all applications from fixed stations to marine and mobility markets. The XRJ is optimised for high throughput for global enterprise applications.

Production units are 100% tested with a rigorous process to ensure reliable maintenance-free operation for more than 10 years. Available in power options of 10, 20, 40 and 50W.

• GEO / MEO / LEO compatible.
• BUC, LNB, OMT and TRF integrated into compact & lightweight package.
• Integrated polarizer allowing Manual Polarity Switching of TX & RX circular polarisation.
• Full Ka-band coverage 27.5 – 31GHz transmit / 17.7 – 21.2GHz receive - Single or Multi Sub-band transmit/receive options.
• Compatible with all Global Skyware antennas.
• PLL LNB with external or internal (4ppm) REF.
• L Band (950 - 1950MHz) Receive IF with S Band (1400-2400MHz) Transmit IF
• Durable IP-.67 rated enclosure.
• High reliability, field replaceable fans.
• Monitoring & control via Open BMIP / SNMP protocols.
• Includes RF gain control and output power detection.


Download the XRJ - Ka Band Transceiver Platform : 5W - 25W Linear Power / 10W - 40W Saturated Power specifications.

Commercial-XRJ.pdf

Milband-XRJ.pdf

XRJ3XFX9_10_20_40_50W_Mil-Ka_band_Transceivers.pdf
