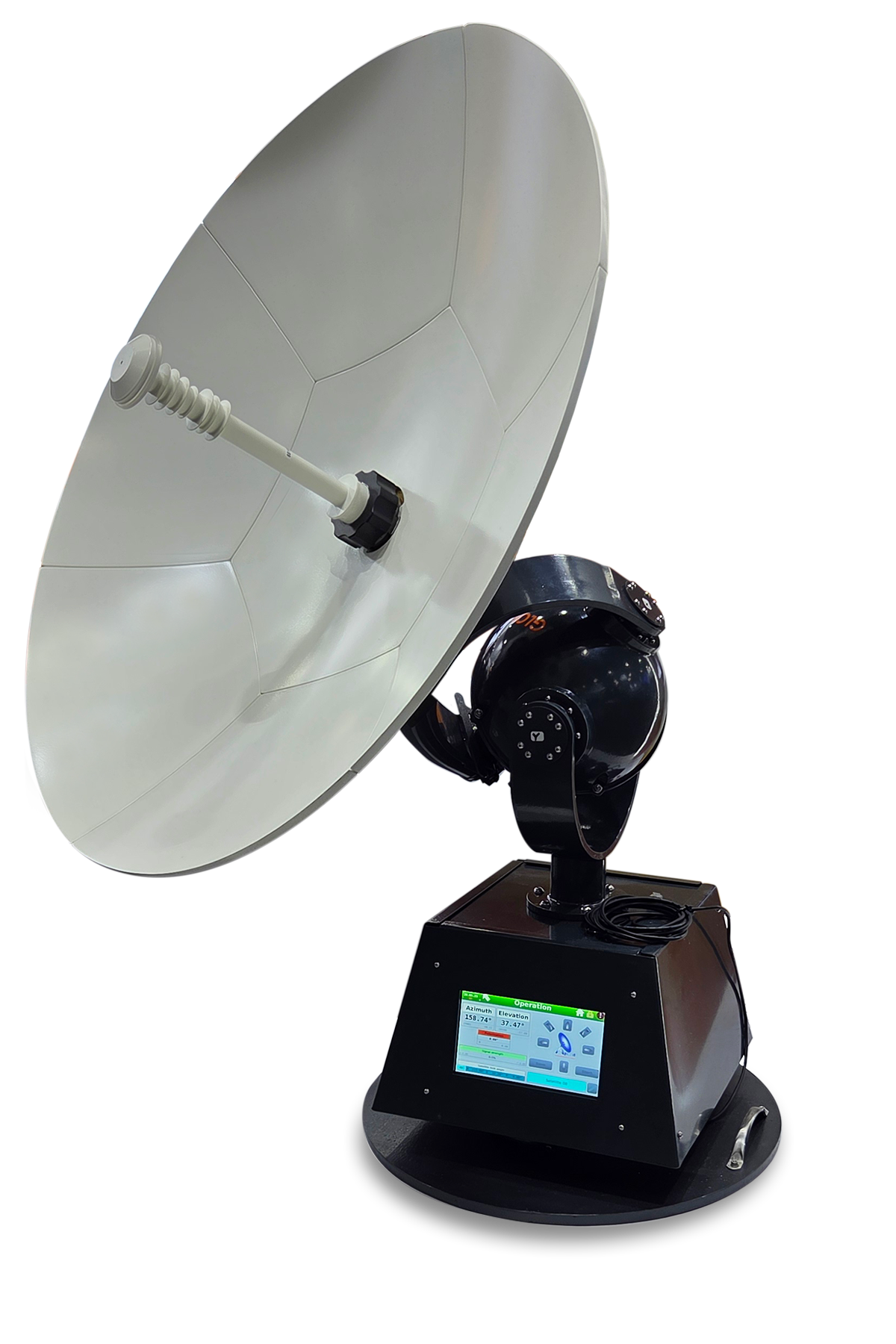

XY Antenna

Rapid deploy, highest degree of modularity, simple no tools assembly and one button auto acquire.

When you are out in the field and need high throughput, reliable connectivity fast, our XY antenna makes the ideal choice. Leveraging a unique XY motorized system, it is a small, lightweight system, ideal for quick deploy with no backlash. An integrated cable raceway in a single meachanical IP67 housing ensures othogonality and repeatable operation at all angles.

Stable Quadpod pedestal base with quick connect legs and built in ACU offers multiple levels of operation including auto acquire, inclined orbit tracking, program track with closed loop signal tracking, and search algorithms to auto calibrate and find satellites (particularly if the TLE is stale).

The integrated system means no need for multiple discrete feed elements and radio frequency (RF) units. This is all packaged into a transceiver attached to the back of the reflector.

Features:

• Quick deploy modular design.
• Auto-Acquire with built in auto cailbration and closed loop signal tracking and pointing.
• <15 minutes to assemble and calibrate
• LEO, MEO, HEO & GEO compatible.
• Axis Symmetric Segmented Carbon Fiber Reflector with RF Kits for multi band operation.
• OpenAMIP Control Interface and standard L/S band IF interface.
• Integrated Transceiver Ku and Ka Band. Discreet RF at X band.
• Compliant to MIL-STD-461G; MIL-STD- 810H; MIL-STD 188-164C (STANAG 4484).

For more details and prices please use the product enquiry form or contact our sales team.

Download the XY Antenna specifications.

0.98m_Multi_Orbit_Quick_Deploy_Antenna_System.pdf

1.2m_Quick_Deploy_Multi_Orbit_Antenna_System.pdf

1.8m_Multi_Orbit_Quick_Deploy_Antenna_System.pdf

2.4m_Multi_Orbit_Quick_Deploy_Antenna_System.pdf
