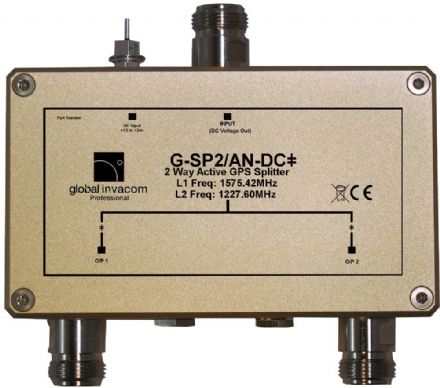

GPS 2 Way Active Splitter

The Global Professional GPS Active 2 way Splitter has been designed to allow the signal from a GPS antenna to be shared between two receivers. The unit is configured to... Read full description

SKU: G-SP2/AN-DC1

Categories: Professional electronics

Select Size

Description Specifications Enquire

The Global Professional GPS Active 2 way Splitter has been designed to allow the signal from a GPS antenna to be shared between two receivers.

The unit is configured to insert a DC voltage to the antenna via a solder feed through. Voltage required must be specified when ordering.

Both output ports incorporate a 200ohm dc load to simulate an Antenna DC current draw.

DC is loaded to both outputs.

Available in 'N', 'F', 'BNC' & 'SMA' Connector configurations

GPS splitters can also be supplied as rack mount solutions

Weight	0.4kg
Frequnecy Pass	L1 1575.42MHz L2 1227.60MHz
Through Loss	0dB +/-0.5dB
Port to Port Isolation	+20dB
Supply Voltage	12 -24V DC
Max DC Current Handling	1 Amp
Current Consumption	60mA
Dimensions	116mm x 66mm x 26mm

For more details please use the product enquiry form or contact our sales team.

Specifications

Download the GPS 2 Way Active Splitter specifications.

l-sp2-an-dc1.pdf
