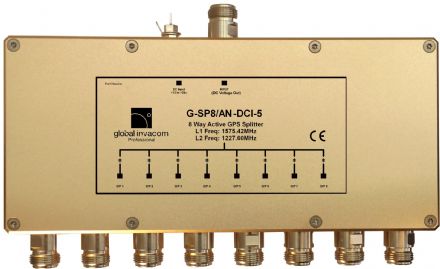

GPS 8 Way Active Splitter
Categories:
ANCIL
The Global Professional GPS Active 8 way Splitter has been designed to allow the signal from a GPS antenna to be shared between eight receivers.
The unit is configured to insert a DC vol...
More Information
The Global Professional GPS Active 8 way Splitter has been designed to allow the signal from a GPS antenna to be shared between eight receivers.
The unit is configured to insert a DC voltage to the antenna via a solder feed through. Voltage required must be specified when ordering.
All output ports incorporate a 200ohm dc load to simulate an Antenna DC current draw.
DC loaded to all output ports.
Available in 'N', 'F', 'BNC' & 'SMA' Connector configurations. Other powering options are available upon request.
| Weight | 1.2kg |
| Frequency Pass | L1 1575.42MHz L2 1227.60MHz |
| Through Loss | 0dB +/-3dB |
| Port to Port Isolation | +20dB |
| Return Loss | +15dB |
| Supply Voltage | 12 -48V DC |
| Max DC Current Handling | 1 Amp |
| Current Consumption | 60mA |
| Dimensions | 223mm x 98.5mm x 26mm |
For more details please use the product enquiry form or contact our sales team.
Specifications
Download the GPS 8 Way Active Splitter specifications.
