UHF / IF 2 Way Active Splitter

The Global Professional UHF / IF Band Active 2 way Splitter has been designed to split a UHF or IF signal with low insertion loss. Dependant on configuration the unit... Read full description

SKU: U-SP2/AB-DC1

Categories: Global Professional

Select Size

Description Specifications Enquire

The Global Professional UHF / IF Band Active 2 way Splitter has been designed to split a UHF or IF signal with low insertion loss.

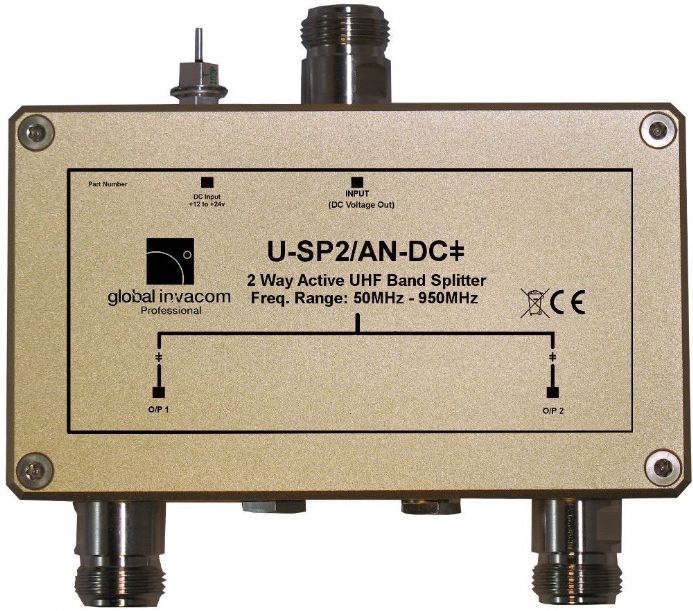

Dependant on configuration the unit can be powered either by Port 1 or external PSU available separately. The picture illustrates a N type splitter with DC passing on port 1 and remaining port blocked however other configurations are available

Please note that Active Splitters cannot be used as Active Combiners.

UHF Band splitters can also be supplied as rack mount solutions.

Specifications:

Weight	0.4kg
Frequency Pass	50MHz - 950MHz
Through Loss	0dB +/-0.5dB
Port to Port Isolation	+20dB
Return Loss	+15dB
Supply Voltage	12 -48V DC
Max DC Current Handling	1 Amp
Current Consumption	60mA
Dimensions	116mm x 66mm x 26mm
