UHF / IF 4 Way Active Splitter

The Global Professional UHF / IF Band Active 4 way Splitter has been designed to split a UHF or IF signal with low insertion loss. Dependant on configuration the unit... Read full description

SKU: U-SP4/AB-DC1

Categories: Professional electronics

Select Size

Description Specifications Enquire

The Global Professional UHF / IF Band Active 4 way Splitter has been designed to split a UHF or IF signal with low insertion loss.

Dependant on configuration the unit can be powered either by Port 1 or external Power Supply Unit (PSU) available separately.

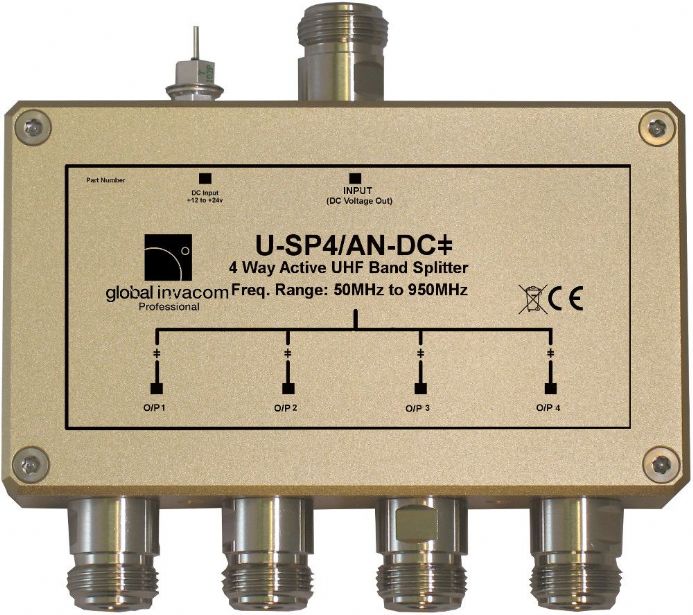

The picture illustrates a N type splitter with DC passing on port 1 and remaining 3 ports blocked however other configurations are available.

It features:

EMI-proof enclosure
Low insertion loss
High Isolation
N type & BNC connectors available in 50 ohm and 75 ohm variants
F type & SMA connectors available in 50 ohm

Please note: Active Splitters cannot be used as Active Combiners.

UHF Band splitters can also be supplied as rack mount solutions

Specifications:

Weight	0.4kg
Frequency Pass	50MHz - 950MHz
Through Loss	1dB +/-1dB
Port to Port Isolation	+20dB
Return Loss	+15dB
Supply Voltage	12 -48V DC
Max DC Current Handling	1 Amp
Current Consumption	60mA
Dimensions	116mm x 66mm x 26mm

For more details please use the product enquiry form or contact our sales team.

Specifications

Download the UHF / IF 4 Way Active Splitter specifications.
