UHF / IF 4 Way Passive Splitter/Combiner

The Global Professional UHF / IF Band Passive 4 way Combiner/Splitter has been designed to combine or split a UHF or IF signal. The unit can be used in either... Read full description

SKU: U-SPCO4/PB-DC1

Categories: Professional electronics

Select Size

Description Specifications Enquire

The Global Professional UHF / IF Band Passive 4 way Combiner/Splitter has been designed to combine or split a UHF or IF signal.

The unit can be used in either configuration as splitter or combiner.

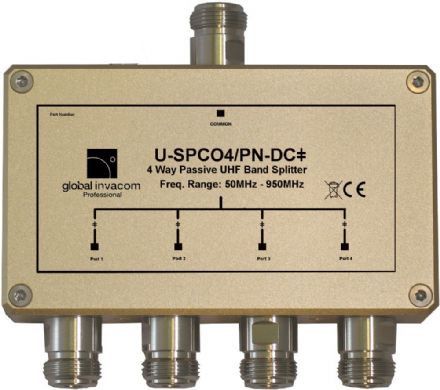

The picture illustrates a N type splitter with DC passing on port 1 and remaining 3 ports blocked however other configurations are available.

Specifications:

Weight	0.4kg
Frequnecy Pass	50MHz - 950MHz
Through Loss	8dB +/-1dB
Port to Port Isolation	+20dB
Return Loss	+15dB
Max DC Current Handling	5 Amp
Dimensions	116mm x 66mm x 26mm

UHF Band splitter/combiner's can also be supplied as rack mount solution.

For more details please use the product enquiry form or contact our sales team.

Specifications

Download the UHF / IF 4 Way Passive Splitter/Combiner specifications.

u-spco4-pn-dc1.pdf
