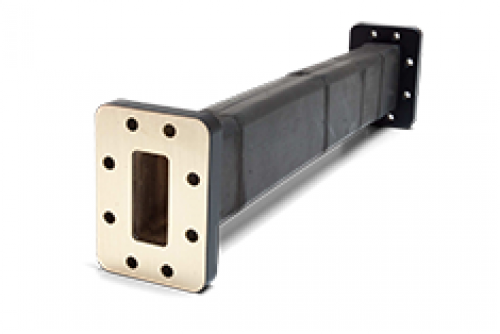

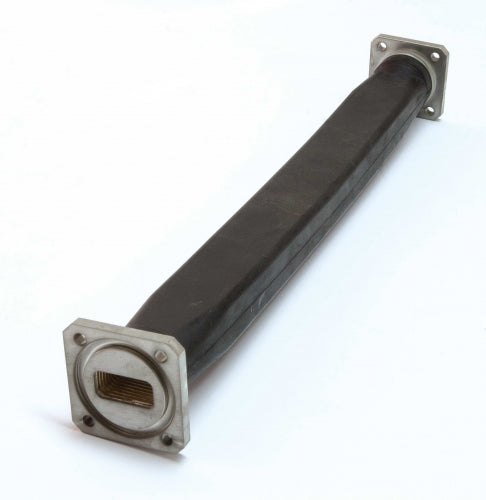

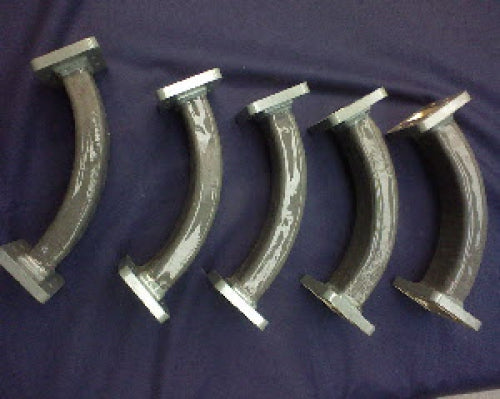

Flexible Waveguide Electrical/Mechanical

Twistable flexible waveguides are made from a helically wound silver plated brass strip, seamless flexible waveguides are made from a corrugated tube. Download the specifications for all our available Flexible... Read full description

SKU: Flexible Waveguide Electrical/Mechanical

Categories: Waveguides

Description

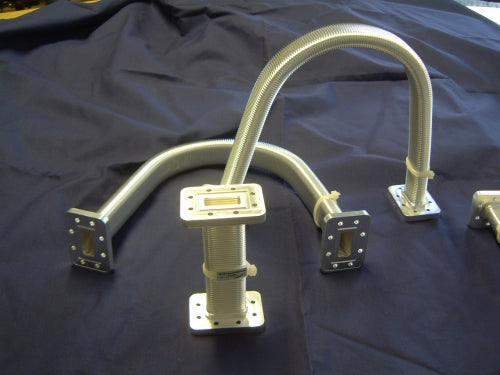

Twistable flexible waveguides are made from a helically wound silver plated brass strip, seamless flexible waveguides are made from a corrugated tube.

Download the specifications for all our available Flexible Waveguides or view the range below.

Rectangular Flexible/Twistable and Flexible/Only Waveguide - electrical properties

Operating Frequency Band (GHz) Waveguide Designation Electrical specification
UK WG IEC R E.I.A WR PART NUMBER FT = Flexible/Twistable FO = Flexible/Only Atten-uation dB/m V.S.W.R. & (Return Loss dB's) Peak power KW max *RF leak-age dB
300mm 600mm 900mm
2.60 -3.95 10 32 284 FT 10 PVZ-(***)-(***) /M(**) 0.11 1.055 (31.4) 1.070 (29.5) 1.070 (29.5) 5000 2360 50
2.60 - 3.95 10H FT 10H PVZ-(***)-(***) /M(**) 0.12 1.055 (31.4) 1.070 (29.5) 1.070 (29.5) N/A N/A 50
3.30 - 4.90 11A 40 229 FT 11A PVZ-(***)-(***) /M(**) 0.15 1.058 (31.0) 1.070 (29.5) 1.075 (28.8) 4000 1680 50
3.95 - 5.85 12 48 187 FT 12 PVZ-(***)-(***) /M(**) 016 1.058 (31.0) 1.075 (28.8) 1.080 (28.3) 3000 1027 50
4.90 - 7.05 13 58 159 FT 13 PVZ-(***)-(***) /M(**) 0.18 1.058 (31.0) 1.080 (28.3) 1.085 (27.8) 2500 827 50
5.85 - 8.20 14 70 137 FT 14 PVZ-(***)-(***) /M(**) 0.28 1.064 (30.2) 1.085 (27.8) 1.090 (27.3) 2000 587 50
7.05 - 10.0 15 84 112 FT 15 PVZ-(***)-(***) /M(**) 0.30 1.064 (30.2) 1.090 (27.3) 1.092 (27.1) 1600 384 50
8.20-12.40 16 100 90 FT 16 PVZ-(***)-(***) /M(**) 0.40 1.064 (30.2) 1.092 (27.1) 1.094 (27.0) 1200 244 50
10.0 - 15.0 17 120 75 FT 17 PVZ-(***)-(***) /M(**) 0.50 1.07 (29.4) 1.094 (27.0) 1.100 (26.4) 800 195 50
12.4 - 18.0 18 140 62 FT 18 PVZ-(***)-(***) /M(**) 0.80 1.07 (29.4) 1.100 (26.4) 1.105 (26.0) 400 120 50
15.0 - 22.0 19 180 51 FT 19 PVZ-(***)-(***) /M(**) 1.00 1.100 (26.4) 1.120 (25.0) 1.120 (25.0) 200 95 50
18.0 - 26.5 20 220 42 FT 20 PVZ-(***)-(***) /M(**) 1.20 1.152 (23.0) 1.170 (22.1) 1.170 (22.1) 120 53 50
22.0 - 33.0 21 260 34 FT 21 PVZ-(***)-(***) /M(**) 1.50 1.170 (22.1) 1.195 (21.0) 1.195 (21.0) 100 42 50
26.5 - 40.0 22 320 28 FT 22 PVZ-(***)-(***) /M(**) 2.0 1.195 (21.0) 1.300 (17.1) 1.300 (17.7) 90 32 50

Double Ridge Flexible/Twistable and Flexible/Only Waveguide - electrical properties

Waveguide Designation Electrical specification
Waveguide Designation PART NUMBER FT = Flexible/Twistable FO = Flexible/Only Atten-uation dB/m V.S.W.R. & (Return Loss dB's) Average power KW max Peak power MW max *RF Leakage dB
300mm 600mm 900mm
4.75 - 11.0 WRD475 D24 FT 475 PVZ-(***)-(***) /M(**) 0.65 1.110 (25.7) 1.150 (23.1) 1.150 (23.1) N/A N/A 50
5.8 - 16.0 WRD580 D28 FT 580 PVZ-(***)-(***) /M(**) 1.20 1.180 (21.5) 1.250 (19.1) 1.300 (17.7) N/A N/A 50
6.5 - 18.0 WRD650 D24 FT 650 PVZ-(***)-(***) /M(**) 1.31 1.200 (20.8) 1.250 (19.1) 1.350 (16.6) N/A N/A 50
7.5 - 18.0 WRD750 D24 FT 750 PVZ-(***)-(***) /M(**) 1.31 1.200 (20.8) 1.250 (19.1) 1.300 (17.1) N/A N/A 50
11.0 - 26.5 WRD110 C24 FT 110 PVZ-(***)-(***) /M(**) 3.61 1.220 (20.0) 1.350 (16.6) 1.350 (18.6) N/A N/A 50
18.0 - 40.0 WRD180 C24 FT 180 PVZ-(***)-(***) /M(**) 2.79 1.375 (16.0) 1.500 (14.0) 1.500 (14.0) N/A N/A 50

* The electrical properties of flex/only core are essentially the same as for the flexible/twistable core, with the exception of the RFl leakage figure which is not applicable to flex/only core. A conductive silicone jacket is available for standard flexible/twistable waveguides, which guarantees RF leakage better than -90dB - insert the letter E in the jacket field of the part number (eg FT 20PEB 403-402/M300)
** Insert flexible Waveguide length in mm
*** For 3 digit Rectangular Waveguide or Double Ridged Waveguide flange part number, refer to the Flange catalogue, or consult our sales team.
H = Half Height Waveguide

Notes

  1. RF Leakage specification based on the our method of test detailed in the specification sheet.
  2. V.S.W.R. figures are based on Plain to Plain flanges. Degraded figures can be expected with Plain to Choke flanges.
  3. Power specifications are based on figures published in IEC 636 for complete jacketed assemblies and are the maximum recommended for the lowest frequency in the designated band.
  4. Peak power rating is calculated mid-band with a load match of 1.5:1, a power safety factor of 2.25 and assumes a voltage breakdown at NTP of 30,000V/cm.. Power ratings are for information only.
  5. The match of the waveguide can generally be optimised over a reduced frequency band. Please specify the operating band when ordering.



Rectangular Flexible/Twistable and Flexible/Only Waveguide - mechanical properties

Waveguide Designation Mechanical specification
UK WG IEC R E.I.A WR PART NUMBER FT = Flexible/Twistable FO = Flexible/Only Sheath size mm Weight Unflanged Kg/m Maximum Operating Pressure lb/in sq Minimum Bend Radius *Twisting Rating
Static E Plane mm Static H Plane mm Repeated E Plane mm Repeated H Plane mm Static deg/m Repeated deg/m
10 32 284 FT 10 PVZ-(***)-(***) /M(**) 86X48 0.803 20 180 355 710 1420 105 25
10H FT 10H PVZ-(***)-(***) /M(**) 85X24 0.658 20 150 405 810 1625 105 25
11A 40 229 FT 11A PVZ-(***)-(***) /M(**) 74X43 0.729 30 165 330 880 1320 130 35
12 48 187 FT 12 PVZ-(***)-(***) /M(**) 61X36 0.560 30 165 330 880 1320 155 40
13 68 158 FT 13 PVZ-(***)-(***) /M(**) 53X36 0.533 30 125 255 610 1020 185 45
14 70 137 FT 14 PVZ-(***)-(***) /M(**) 48X25 0.331 30 100 205 405 815 210 52
15 84 112 FT 15 PVZ-(***)-(***) /M(**) 38X20 0.274 35 95 150 305 810 260 68
16 100 90 FT 16 PVZ-(***)-(***) /M(**) 31X15 0.226 45 85 125 255 510 315 76
17 120 75 FT 17 PVZ-(***)-(***) /M(**) 23x15 0.186 45 85 115 255 510 365 92
18 140 62 FT 18 PVZ-(***)-(***) /M(**) 23X15 0.162 45 50 100 205 405 445 112
19 180 51 FT 19 PVZ-(***)-(***) /M(**) 23x15 0.120 45 50 100 205 405 445 112
20 220 42 FT 20 PVZ-(***)-(***) /M(**) 18X13 0.078 45 30 85 125 255 630 157
21 260 34 FT 21 PVZ-(***)-(***) /M(**) 18X13 0.078 45 30 85 125 255 630 157
22 320 28 FT 22 PVZ-(***)-(***) /M(**) 13 dia 0.057 45 25 50 100 205 920 230

Double Ridge Flexible/Twistable and Flexible/Only Waveguide - mechanical properties

Waveguide Designation Mechanical specification
Waveguide Designation PART NUMBER FT = Flexible/Twistable FO = Flexible/Only Sheath size mm Weight Unflanged Kg/m Maximum Operating Pressure lb/in sq Minimum Bend Radius *Twisting Rating
Static E Plane mm Static H Plane mm Repeated E Plane mm Repeated H Plane mm Static deg/m Repeated deg/m
WRD475 C24 FT 475 PVZ-(***)-(***) /M(**) 36X20 0.274 30 89 180 355 915 295 98
WRD580 C28 FT 580 PVZ-(***)-(***) /M(**) 26X15 0.186 45 76 155 305 510 490 130
WRD650 C24 FT 650 PVZ-(***)-(***) /M(**) 25X15 0.186 45 76 155 305 510 390 115
WRD750 C24 FT 750 PVZ-(***)-(***) /M(**) 19X13 0.078 45 50 100 205 405 490 130
WRD110 C24 FT 110 PVZ-(***)-(***) /M(**) 19X13 0.078 45 50 100 205 405 590 196
WRD180 C24 FT 180 PVZ-(***)-(***) /M(**) 13 dia 0.057 45 25 50 100 205 720 246

* Twisting Rating not applicable to flex/only core
Length of Flexible Twistable Assemblies
The overall length of waveguide assemblies, is measured as the distance between the front face of both flanges.
The maximum length of flexible and flexible twistable waveguide is dictated by the mechanical strength of the waveguide and the production tooling available.
The following is a list of the standard recommended length for the various waveguide sizes. Other lengths may be available on request but may be subject to tooling and design charges.
MM: 75, 150, 230, 300, 380, 460, 500, 600, 650, 760, 900, 1000, 1250 and 1500
INCHES: 12, 24, 36 and 48.
All lengths are subject to a tolerance on the length of 1.5% or 2mm or whichever is greater.



Rectangular Seamless Flexible only - electrical properties

Operating Frequency Band (GHz) Waveguide Designation Electrical specification
UK WG IEC R E.I.A WR PART NUMBER FS = Seamless Flexible Only Attenuation dB/m V.S.W.R. & (Return Loss dB's) Average power W max Peak power KW max
2.60 -3.95 10 32 284 FS 10 CXM-(***)-(***) /M(**) 0.07 1.08 (28.3) 10000 1000
3.30 - 4.90 11A 40 229 FS11A CXM-(***)-(***) /M(**) .07 1.08 (28.3) 8000 800
3.95 - 5.85 12 48 187 FS 12 CXM-(***)-(***) /M(**) 0.1 1.09 (27.3) 6500 650
4.90 - 7.05 13 58 159 FS 13 CXM-(***)-(***) /M(**) 0.16 1.1 (26.4) 6000 600
5.85 - 8.20 14 70 137 FS 14 CXM-(***)-(***) /M(**) 0.16 1.1 (26.4) 5000 500
7.05 - 10.0 15 84 112 FS15 CXM-(***)-(***) /M(**) 0.2 1.1 (26.4) 4000 400
8.20-12.40 16 100 90 FS 16 CXM-(***)-(***) /M(**) 0.3 1.1 (26.4) 3000 300
10.0 - 15.0 17 120 75 FS 17 CXM-(***)-(***) /M(**) 0.4 1.1 (26.4) 1500 150
12.4 - 18.0 18 140 62 FS 18 CXM-(***)-(***) /M(**) 0.5 1.12 (24.9) 1000 100
15.0 - 22.0 19 180 51 FS19 CXM-(***)-(***) /M(**) 0.66 1.2 (20.8) 500 50
18.0 - 26.5 20 220 42 FS 20 CXM-(***)-(***) /M(**) 0.98 1.2 (20.8) 300 30
22.0 - 33.0 21 260 34 FS 21 CXM-(***)-(***) /M(**) 1.15 1.3 (17.7) 200 20
26.5 - 40.0 22 320 28 FS 22 CXM-(***)-(***) /M(**) 1.6 1.3 (17.7) 75 7.5



Rectangular Seamless Flexible only - mechanical properties

Operating Frequency Band (GHz) Waveguide Designation mechanical properties
UK WG IEC R E.I.A WR PART NUMBER FS = Seamless Flexible Only Centre line bend radius (mm)
E - plane H - plane
2.60 -3.95 10 32 284 FS 10 CXM-(***)-(***) /M(**) 70 120
3.30 - 4.90 11A 40 229 FS11A CXM-(***)-(***) /M(**) 57 83
3.95 - 5.85 12 48 187 FS 12 CXM-(***)-(***) /M(**) 48 73
4.90 - 7.05 13 58 159 FS 13 CXM-(***)-(***) /M(**) 41 57
5.85 - 8.20 14 70 137 FS 14 CXM-(***)-(***) /M(**) 34 51
7.05 - 10.0 15 84 112 FS15 CXM-(***)-(***) /M(**) 29 45
8.20-12.40 16 100 90 FS 16 CXM-(***)-(***) /M(**) 25 43
10.0 - 15.0 17 120 75 FS 17 CXM-(***)-(***) /M(**) 20 40
12.4 - 18.0 18 140 62 FS 18 CXM-(***)-(***) /M(**) 18 30
15.0 - 22.0 19 180 51 FS19 CXM-(***)-(***) /M(**) 15 25
18.0 - 26.5 20 220 42 FS 20 CXM-(***)-(***) /M(**) 13 23
22.0 - 33.0 21 260 34 FS 21 CXM-(***)-(***) /M(**) 12 20
26.5 - 40.0 22 320 28 FS 22 CXM-(***)-(***) /M(**) 12 20



For more details and prices please use the product enquiry form or contact our sales team.
